Description

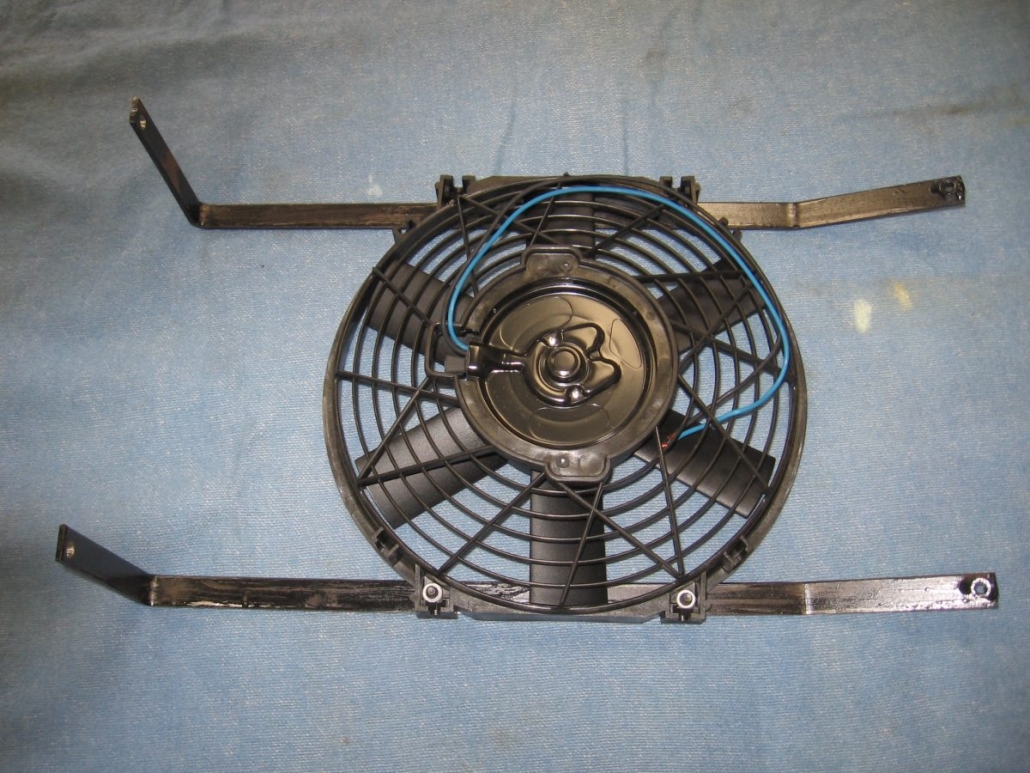

10″ electric fan with mounting brackets to make it easy to fit to TD/E/F models.
Remove the undertray and slide the unit up between the radiator and grille. Mark and drill the return flange of the top panel either side of the bonnet catch and bolt the unit in place. Drill up through the lower part of the bracket into the starting handle bracket and secure the unit with two bolts. Replace the undertray. The unit is now fitted and can be wired in, either to a thermostat or timer or manual switch.
Suitable for positive or negative earth.
